Tuesday, February 19, 2013

Usage of User Preferences in ADF Mobile

Preferences enable you to add settings that can be configured by end users. In this article will see how to use adfmf:preferenceList to change the display name format setting in the Contacts list at run time.

 ADF Mobile supports application-level and application feature-level user preference pages, in this demo I'm using application feature-level user preference page. Preferences are populated with default values at startup. These values are defined in the adf-feature.xml file, on load of application user can click on preferences feature in navigation bar and select the display name format to be displayed.

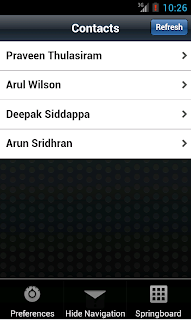

Application screen looks like below when it deployed and run on Android Device/Emulator. Displays the Contacts list on the screen.


Click on the menu button, this will launch the Navigation Bar with Preferences, Hide Navigation and SpringBoard options. Click on Preferences.


In Contact Preference Screen, clicking on Name Display will open the popup by displaying Name Display formats which are defined in adf-feature.xml  file. Now select "LastName FirstName".


I found the way to refresh the Contacts list in the screen, so striking of the below section. Here user don't need to click on the refresh button, after clicking on the device back button will refresh the contact list.

Next click on the device back button will take you to the Contacts screen, notice here data will be displayed in the old format only "FirstName LastName". Here clicking of the device back button handler should be provide to refresh the Contacts list on the screen. I didn't find any ways to refresh list after back button action, so filed the bug against this once I get the solution will update the article. Time being as a workaround provide refresh button, after clicking on refresh button Contacts list will be redraw with updated name display format.


You can download the sample workspace from here. In below section I will not provide all the steps to create the application, only key ones are shown. Above sample download workspace doesn't have extended lifecycle listener class, please follow the below steps to create LifeCycleListener for fetaure.

By design, for a feature to be informed of Device Actions that are sourced from outside of that feature that feature must have a lifecycle listener. Follow the below steps.
  1. Add new Java Class
  2. Set Name and package as desired
  3. Click '+' under Optional Attributes to add an interface
  4. Choose the interface LifeCycleListener (oracle.adfmf.feature),  Save (no other changes to default class contents need to be made for this)

Next Open the adfmf-feature.xml and map ExtendedFetureLifeCycleListener.java to LifeCycle Event Listener as shown below.


Use the adfmf:preferences element to create the preferences in adf-feature.xml file as below.
<adfmf:feature id="Preference" name="Preference">
 <adfmf:content id="Preference.1">
  <adfmf:amx file="Preference/ContactList.amx"/>
 </adfmf:content>
 <adfmf:preferences>
  <adfmf:preferenceGroup id="Pref1" label="Contact Preference">
   <adfmf:preferenceList id="Pref1NameDisplay" label="Name Display" default="NF1">
    <adfmf:preferenceValue name="FirstName LastName" value="NF1"/>
    <adfmf:preferenceValue name="LastName FirstName" value="NF2"/>
   </adfmf:preferenceList>
  </adfmf:preferenceGroup>
 </adfmf:preferences>
</adfmf:feature>

In ContactList.amx page access the preference values using EL expression and ternary operator is used the switch between the display names.
#{preferenceScope.feature.Preference.Pref1.Pref1NameDisplay eq 'NF1' ? row.firstLastName : row.lastFirstName}"

Monday, February 11, 2013

ADF Mobile Email - Send Multiple File Attachments with amx:selectManyCheckbox option

Here's a use case: A presenter is showing presentation on their Android/iPhone/iPad devices to the client. After the presentation, client may asks for the presentation files for there further understanding. Now presenter wants to attach all the files used in presentation and send mail to the client.

Application screen looks like below when it deployed and run on Android Device/Emulator. Displays the Employees List in first screen.


Clicking on any employee will leads to the Compose screen, where the selected employee email will be pre-populated in "To" field.


Enter the subject and message details need to be send. Click on "Attach a file" button, a popup window will open and files under the "/mnt/sdcard/Download" folder will be displayed. Now select the files that as to be attached and click on Ok button.


Now notice the attached files will be displayed in-front of  Attached Files. Next clicking on Send Email button will take you to the next screen where all the email clients installed in the device will be listed, select any client and send the email.


Tested in Android device, I'm able to send email with multiple attachments. You can download the sample workspace from here.

Implementation Steps

Create an ADF Mobile Application, the application consists of two projects. Application Controller project of Application LifeCycle, Listeners, Device Features DataControl and ViewController project contains mobile features content like AMX Files, Task Flows and DataControl.

In ViewController project, locate and expand the Application Sources folder, create a Employee.java file and add the below code.
public class Employee {
    protected int id;
    protected String firstName;
    protected String lastName;
    protected String email;
    private transient PropertyChangeSupport propertyChangeSupport = new PropertyChangeSupport(this);

    public void addPropertyChangeListener(PropertyChangeListener l) {
        propertyChangeSupport.addPropertyChangeListener(l);
    }

    public void removePropertyChangeListener(PropertyChangeListener l) {
        propertyChangeSupport.removePropertyChangeListener(l);
    }

    public Employee() {
        super();
    }

    public Employee(int id, String firstName, String lastName, String email) {
        super();
        this.id = id;
        this.firstName = firstName;
        this.lastName = lastName;
        this.email = email;
    }

    public void setId(int id) {
        int oldId = this.id;
        this.id = id;
        propertyChangeSupport.firePropertyChange("id", oldId, id);
    }

    public int getId() {
        return id;
    }

    public void setFirstName(String firstName) {
        String oldFirstName = this.firstName;
        this.firstName = firstName;
        propertyChangeSupport.firePropertyChange("first", oldFirstName, firstName);
    }

    public String getFirstName() {
        return firstName;
    }

    public void setLastName(String lastName) {
        String oldLastName = this.lastName;
        this.lastName = lastName;
        propertyChangeSupport.firePropertyChange("last", oldLastName, lastName);
    }

    public String getLastName() {
        return lastName;
    }

    public void setEmail(String email) {
        String oldEmail = this.email;
        this.email = email;
        propertyChangeSupport.firePropertyChange("email", oldEmail, email);
    }

    public String getEmail() {
        return email;
    }
}
Create EmployeeListDC.java file and add the below code, create DataControl based on EmployeeListDC.java file.
public class EmployeeListDC {
    private static List s_employees = null;
    private transient ProviderChangeSupport providerChangeSupport = new ProviderChangeSupport(this);


    public void addProviderChangeListener(ProviderChangeListener l) {
        providerChangeSupport.addProviderChangeListener(l);
    }

    public void removeProviderChangeListener(ProviderChangeListener l) {
        providerChangeSupport.removeProviderChangeListener(l);
    }

    public EmployeeListDC() {
        super();
        if (s_employees == null) {
            s_employees = new ArrayList();
            s_employees.add(new Employee(1, "Praveen", "Thulasiraman", "praveen.thulasiraman@xyz.com"));
            s_employees.add(new Employee(2, "Arul", "wilson", "arul.wilson@xyz.com"));
            s_employees.add(new Employee(3, "Deepak", "Siddappa", "deepak.siddappa@xyz.com"));
            s_employees.add(new Employee(4, "Arun", "Sridhran", "arun.x.sridharan@xyz.com"));
        }
    }

    public Employee[] getEmployees() {
        Employee e[] = null;
        e = (Employee[])s_employees.toArray(new Employee[s_employees.size()]);
        return e;
    }
}
Create FileAttachment.java file and add below code.
public class FileAttachment {
    private int fileIndex;
    private String fileName;
    private String filePath;
    private transient PropertyChangeSupport propertyChangeSupport = new PropertyChangeSupport(this);

    public void addPropertyChangeListener(PropertyChangeListener l) {
        propertyChangeSupport.addPropertyChangeListener(l);
    }

    public void removePropertyChangeListener(PropertyChangeListener l) {
        propertyChangeSupport.removePropertyChangeListener(l);
    }

    public FileAttachment() {
        super();
    }

    public FileAttachment(int fileIndex, String fileName, String filePath) {
        super();
        this.fileName = fileName;
        this.filePath = filePath;
        this.fileIndex = fileIndex;
    }

    public void setFileIndex(int fileIndex) {
        int oldFileIndex = this.fileIndex;
        this.fileIndex = fileIndex;
        propertyChangeSupport.firePropertyChange("fileIndex", oldFileIndex, fileIndex);
    }

    public int getFileIndex() {
        return fileIndex;
    }

    public void setFileName(String fileName) {
        String oldFileName = this.fileName;
        this.fileName = fileName;
        propertyChangeSupport.firePropertyChange("fileName", oldFileName, fileName);
    }

    public String getFileName() {
        return fileName;
    }

    public void setFilePath(String filePath) {
        String oldFilePath = this.filePath;
        this.filePath = filePath;
        propertyChangeSupport.firePropertyChange("fileName", oldFilePath, filePath);
    }

    public String getFilePath() {
        return filePath;
    }
}
Create FileAttachmentListDC.java file and add the below code, create DataControl based on FileAttachmentListDC.java file.
public class FileAttachmentListDC {
    private static List s_FileAttachment = null;
    private transient ProviderChangeSupport providerChangeSupport = new ProviderChangeSupport(this);

    public void addProviderChangeListener(ProviderChangeListener l) {
        providerChangeSupport.addProviderChangeListener(l);
    }

    public void removeProviderChangeListener(ProviderChangeListener l) {
        providerChangeSupport.removeProviderChangeListener(l);
    }

    public FileAttachmentListDC() {
        super();
        if (s_FileAttachment == null) {
            s_FileAttachment = new ArrayList();
            executeReadDir();
        }
    }

    public void executeReadDir() {
        //  String dirName = AdfmfJavaUtilities.getDirectoryPathRoot(AdfmfJavaUtilities.DeviceOnlyDirectory);
        //Hard Coding the Folder path
        String dirName = "/mnt/sdcard/Download";
        try {
            showDir(new File(dirName));
            providerChangeSupport.fireProviderRefresh("FileAttachment");
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    /**
     * Recursively read the dir and get the file list
     * @param file
     * @throws IOException
     */
    static void showDir(File file) throws IOException {
        int indexCounter = 0;
        if (file.isDirectory()) {
            File[] files = file.listFiles();
            for (int i = 0; i < files.length; i++)
                showDir(files[i]);
        } else {
            s_FileAttachment.add(new FileAttachment(indexCounter, file.getName(), file.getPath()));
            indexCounter++;
        }
    }

    public FileAttachment[] getFileAttachment() {
        FileAttachment a[] = null;
        a = (FileAttachment[])s_FileAttachment.toArray(new FileAttachment[s_FileAttachment.size()]);
        return a;
    }

    /**
     * Clear the PageScopeVariables
     */
    public void clearScopeVariables() {
        ValueExpression ve1 = AdfmfJavaUtilities.getValueExpression("#{pageFlowScope.filePaths}", String.class);
        ve1.setValue(AdfmfJavaUtilities.getAdfELContext(), "");

        ValueExpression ve2 = AdfmfJavaUtilities.getValueExpression("#{pageFlowScope.fileNames}", String.class);
        ve2.setValue(AdfmfJavaUtilities.getAdfELContext(), "");
    }
}
In ViewController project. Locate and expand the Application Sources folder, then expand the META-INF folder. You will see the adfmf-feature.xml file, click on the adfmf-feature.xml file to launch the Feature editor. Add a new feature by clicking the green plus sign on the Features table near top of the editor this will launch the new Create ADF Mobile Feature dialog, modify the values as shown below.


In the Features table, select the newly created feature Email. Under the Features table, click the Content tab, and locate the Content table. Notice that the content item Email.1 is created by default. Next add a new file by clicking the green plus sign and select taskflow option, this will launch the new Create ADF Mobile Task Flow dialog, modify the value as shown below.


Click on the EmailTaskflow.xml to open the file in taskflow editor and follow the below steps.
1) Create two views and name them as EmpList and Email respectively.
2) Draw the control flow case from EmpList to Email and Outcome as "composeEmail", Behavior->Transition as "flipRight".
3) Draw the control flow case from Email to EmpList and Outcome as "empList", Behavior->Transition as "slideLeft".

Double click on EmpList view will launch Create ADF Mobile AMX Page dialog. Open the EmpList.amx page and to source tab and follow the below steps:
1) In Header facet, amx:outputText set the value as "Employee List"
2) From DC palette drag and drop EmployeeListDC->employees->ADF Mobile List View and select the default options
3) From Component palette drag and drop amx:setPropertyListener into amx:listItem and modify the values as shown in below code.
<amx:listView var="row" value="#{bindings.employees.collectionModel}"
			  fetchSize="#{bindings.employees.rangeSize}" id="lv1">
	<amx:listItem id="li1" action="composeEmail">
		<amx:outputText value="#{row.firstName} #{row.lastName}" id="ot2"/>
		<amx:setPropertyListener from="#{row.email}" to="#{pageFlowScope.email}" type="action"/>
	</amx:listItem>
</amx:listView>
Double click on Email view will launch Create ADF Mobile AMX Page dialog, in page facets select Header. Open the Email.amx page and to source tab and follow the below steps:

1) In Header facet, amx:outputText set the value as "Compose"
2) From DC palette drag and drop DeviceFeatures->sendEmail->ADF Mobile Parameter Form
3) Drop the command button and showPopupBehavior on the button
3) From Component palette drag and drop Popup component on the Panel Page
4) Inside the Popup, drop FileAttachmentListDC->fileAttachment->MultipleSelection as ADF Mobile    Select Many Checkbox and in Edit List binding dialog select values as below
    Multi Select Base Attribute : fileName
    Multi Select Display Attribute : filePath
5) Next drop a command button inside the popup window and closePopupBehavior onto the command button.
6) Create the valueChangeListener for amx:selectManyCheckbox
<amx:panelPage id="pp1">
	<amx:facet name="header">
		<amx:outputText value="Compose" id="ot1"/>
	</amx:facet>
	<amx:panelFormLayout id="pfl1" labelPosition="topStart" fieldHalign="start">
		<amx:inputText value="#{pageFlowScope.email}" label="To" id="it4" readOnly="true"/>
		<amx:inputText value="#{bindings.subject.inputValue}" label="Subject" id="it1"/>
		<amx:inputText value="#{bindings.body.inputValue}" label="Body" id="it5"/>
		<amx:inputText value="Attached Files: #{pageFlowScope.fileNames}" label="" id="it3" readOnly="true"/>
	</amx:panelFormLayout>
	<amx:commandButton text="Attach a file" id="cb3" styleClass="adfmf-commandButton-rounded">
		<amx:showPopupBehavior popupId="AttachmentPopup" type="action" align="overlapBottom" alignId="pp1"/>
	</amx:commandButton>
	<amx:commandButton actionListener="#{bindings.sendEmail.execute}" text="Send Email"
					   disabled="#{!bindings.sendEmail.enabled}" id="cb1" action="empList"
					   styleClass="adfmf-commandButton-rounded"/>
</amx:panelPage>
<amx:popup id="AttachmentPopup" animation="slideUp">
	<amx:selectManyCheckbox value="#{bindings.fileAttachment.inputValue}" id="smc1"
							valueChangeListener="#{pageFlowScope.EmailBean.fetchSelectedFileNames}">
		<amx:selectItems value="#{bindings.fileAttachment.items}"/>
	</amx:selectManyCheckbox>
	<amx:commandButton text="Ok" id="cb2" styleClass="adfmf-commandButton-rounded ">
		<amx:closePopupBehavior popupId="AttachmentPopup" type="action"/>
	</amx:commandButton>
</amx:popup>
7) Create a pageFlowScope managed bean and copy the below method code.
/**
 * Get the selected filePaths
 * @param valueChangeEvent
 */
public void fetchSelectedFileNames(ValueChangeEvent valueChangeEvent) {
	Object[] objArr = (Object[])valueChangeEvent.getNewValue();

	ValueExpression ve =
		AdfmfJavaUtilities.getValueExpression("#{bindings.fileAttachment1.collectionModel}", AmxCollectionModel.class);
	AmxCollectionModel model = (AmxCollectionModel)ve.getValue(AdfmfJavaUtilities.getAdfELContext());

	StringBuffer sbFilePath = new StringBuffer();
	StringBuffer sbFileName = new StringBuffer();
	for (int x = 0; x < objArr.length; x++) {
		Object obj = objArr[x];

		Map provider = (Map)model.getProviders().get(obj);
		String filePathVal = provider.get("filePath").toString();
		sbFilePath.append("," + filePathVal.toString());

		String fileNameval = provider.get("fileName").toString();
		sbFileName.append("," + fileNameval.toString());
	}

	ValueExpression ve1 = AdfmfJavaUtilities.getValueExpression("#{pageFlowScope.filePaths}", String.class);
	ve1.setValue(AdfmfJavaUtilities.getAdfELContext(), sbFilePath.substring(1));

	ValueExpression ve2 = AdfmfJavaUtilities.getValueExpression("#{pageFlowScope.fileNames}", String.class);
	ve2.setValue(AdfmfJavaUtilities.getAdfELContext(), sbFileName.substring(1));
}
8) Go to the bindings tab and modify the values as below for sendEmail Method


9) Create a tree binding as shown below.


10) Create a Action binding


11) Click on Create Executable binding and select Invoke action and follow as shown in below image.


Edit clearVars invoke action and set the Refresh to always, so when ever page loads clearScopeVariables method will get executed to clear all the pageFlowScope variable values.

In the Application menu, select Deploy - New Deployment Profile to start the Create Deployment Profile dialog box. In the Profile Type drop-down list, ensure ADF Mobile for Android/IOS is selected and then click OK. Next select Deploy - New Deployment deployment profile. In the subsequent dialog box, select Deploy application to device/emulator/package, and click Finish.

Friday, February 8, 2013

Adf Mobile - Iterate through all the rows in tree binding using CollectionModel

Scenario is how to iterate through all the rows in tree bindings using managed bean method, using collectionModel we can get the rows. collectionModel exposes a collection of data, EL expressions used within a component that is bound to a collectionModel can be referenced with a row variable, which will resolve the expression for each element in the collection.

Here is the code below which iterate through the rows using collection model. Make sure the departments should be of type Tree binding.
ValueExpression ve1 =
 AdfmfJavaUtilities.getValueExpression("#{bindings.departments.collectionModel}", AmxCollectionModel.class);
AmxCollectionModel model = (AmxCollectionModel)ve1.getValue(AdfmfJavaUtilities.getAdfELContext());

StringBuffer deptNamesString = new StringBuffer();
Object[] myArr = model.getKeys();
for (int x = 0; x < myArr.length; x++) {
 Object myObj = myArr[x];
 Map provider = (Map)model.getProviders().get(myObj);
 String val = provider.get("deptName").toString();
 deptNamesString.append("," + val);
}
//Populating the pageFlowscope variable, which will be displayed in amx page
ValueExpression ve2 =
 AdfmfJavaUtilities.getValueExpression("#{pageFlowScope.departmentNameString}", String.class);
ve2.setValue(AdfmfJavaUtilities.getAdfELContext(), deptNamesString.substring(1));
You can download the sample workspace from here. Application screen looks like below when it deployed and run on Android Device/Emulator. In first screen DepartmentNames values will be empty after clicking on Execute button, in managed bean method using collection model rows will be iterated and stored in pageFlowScope variable, same variable value will be displayed on the screen.

Thursday, February 7, 2013

How to retrieve Selected Items from selectManyCheckbox using ValueChnageListener

The selectManyCheckbox component creates a component which allows the user to select many values from a series of checkboxes. Below is the code to retrieve selected items from selectManyCheckbox using ValueChangeListener method.

Note:- valueChangeEvent.getNewValue() will return Object value like [Ljava.lang.Object;@fcfd12, need to loop the object arrayList to get the values.

public void myValueChangeListener(ValueChangeEvent valueChangeEvent) {
        Object[] objArr = (Object[])valueChangeEvent.getNewValue();
        for (int x = 0; x < objArr.length; x++) {
            Object obj = objArr[x];
            System.out.println(obj.toString());
       }
}

In Below image, how the selectManyCheckbox will be displayed at run time and user selected check box values will be displayed in Jdeveloper console.
